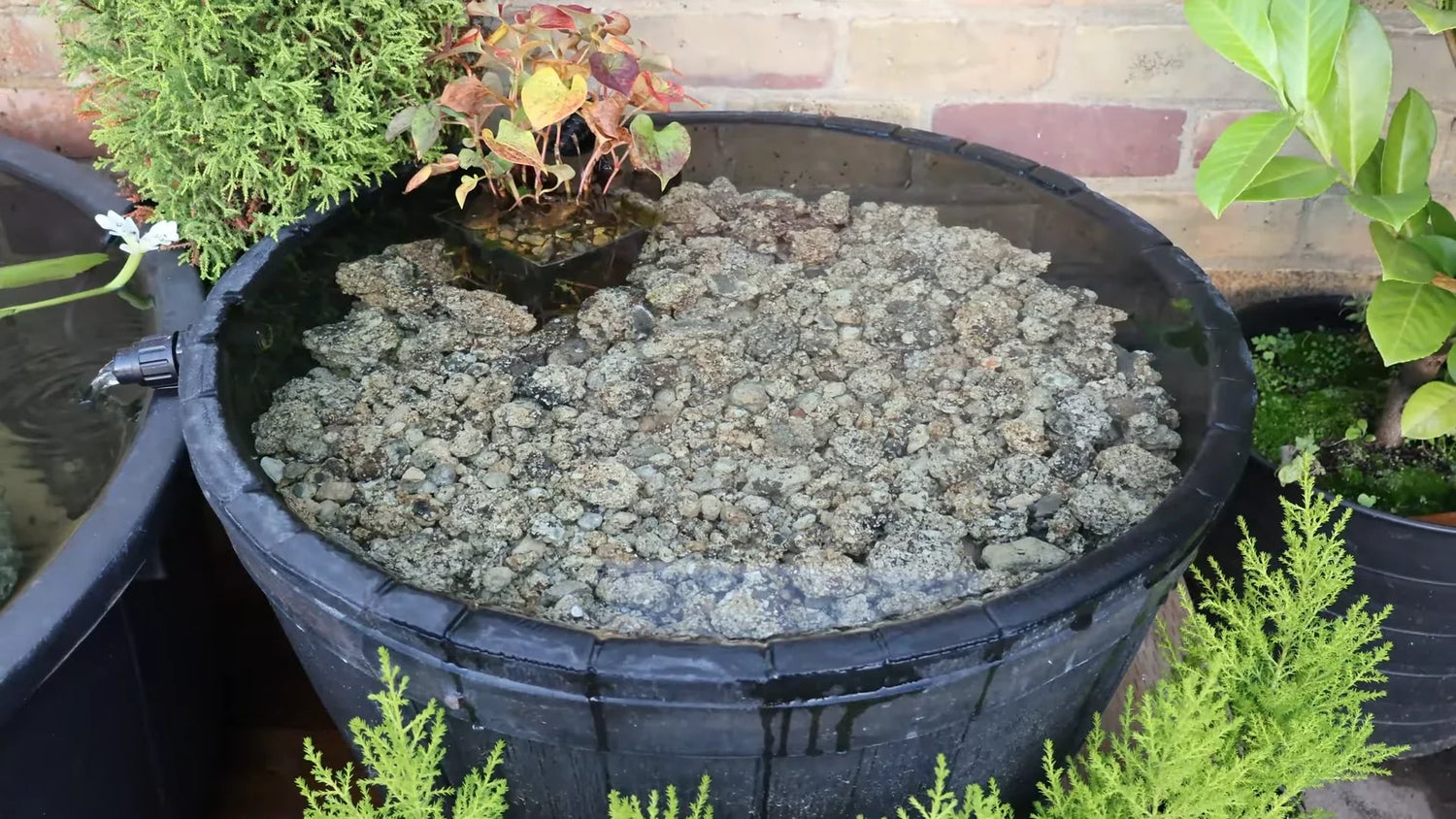

When creating an exquisite garden pond, keeping the water clear is the key. An efficient pond filter can effectively remove impurities, keep the water clean, and create a healthy living environment for aquatic life. Today, we will introduce in detail how to make a homemade pond filter barrel with a plastic whiskey barrel, which is especially suitable for small ponds and containers with a capacity of 1000 liters or more.
Required Materials
Plastic whiskey barrel: As the main container of the filter, its sturdy material and suitable capacity provide basic support for the filtration system.
Alfagrog: It has good air permeability and water absorption, which helps to cultivate beneficial bacteria and decompose harmful substances in the water.
Scottish pebbles: Not only play a decorative role, but also can further filter impurities when water flows through, increasing the contact area between water and filter materials.
Other accessories: including water pipes of suitable diameter, connecting pipes, sealants, water pumps (select the appropriate power according to the size of the pond), cutting tools (such as electric saws, scissors), punching tools, etc.
Production Steps
Preparation Work
Clean the plastic whiskey barrel to ensure that there is no debris, oil, etc. inside to avoid contaminating the pond water.
According to the design plan, plan the installation positions of each component, such as the water inlet, water outlet, water pump placement, etc., and mark them.
Barrel Body Modification
Use cutting tools to cut the water inlet and outlet at the appropriate height of the barrel body. The water inlet should be close to the top of the barrel so that the water can flow from top to bottom through the filter material; the water outlet is located near the bottom of the barrel body to facilitate the discharge of filtered clean water. After cutting, use sandpaper to smooth the edges of the cut to prevent scratching the water pipe or causing water leakage.
Use a punching tool to punch several small holes on the barrel cover. These small holes are used to place water pipes or as vents to ensure air circulation in the barrel, which helps the aerobic respiration of microorganisms during the filtration process.
Install Pipe Fittings
Connect the water pipe tightly to the water inlet and outlet through the connecting pipe fittings, and seal the joints with sealant to ensure no water leakage. For the water inlet pipe, a filter can be installed at the front end to initially filter out larger impurities and prevent clogging inside the filter.
Install the water pump in a suitable location, usually at the bottom of the pond or near the water inlet. Connect the water outlet of the water pump to the water inlet pipe of the filter to ensure that the water pump can smoothly pump the pond water into the filter.
Filling the Filter Material
First, lay a layer of alfagrog on the bottom of the barrel, with a thickness of about one-third of the barrel height. The porous structure of alfagrog provides space for beneficial bacteria to attach and grow. These bacteria can decompose harmful substances such as ammonia nitrogen and nitrite in the water and play a role in biological filtration.
Evenly spread Scottish pebbles on top of the alfagrog layer, and the thickness is adjusted according to personal preference and actual needs, generally 10-15 cm. Pebbles can further filter suspended particles in the water, while allowing the water to flow more evenly through the filter layer.
Assembly and Commissioning
Put the barrel cover with the installed pipes and filled with filter material on the barrel body to ensure a good seal.
Connect the power supply of the water pump, start the water pump, observe whether the water flows through the filter normally, and check whether there is any leakage at each connection. If any problem is found, turn off the power supply in time, make adjustments and repairs.
After running for a period of time, check the quality of the filtered water. Observe the clarity of the water, whether there is any odor, etc., and optimize the filter according to the actual effect, such as adjusting the filling amount of the filter material, cleaning or replacing the filter material, etc.
Maintenance Points
Regular cleaning: Every once in a while (such as 1-2 months, the specific time depends on the water quality and usage of the pond), remove the filter material in the filter, rinse it with clean water, and remove impurities and dirt attached to the surface to maintain its good filtering performance.
Check the pipe fittings: Regularly check whether the water pipes and connecting pipe fittings are aging, cracked, loose, etc. If there is any problem, replace or repair it in time to ensure smooth water flow and no leakage.
Monitor water quality: Use water quality testing tools to regularly test the pH, ammonia nitrogen, nitrite and other indicators of the pond water. Adjust the filter operation time or treat the filter material according to the changes in water quality to maintain the stability of the pond water quality.
Winter protection: In the cold winter, if the pond may freeze, the water in the filter should be drained to prevent the pipes and barrels from breaking due to the expansion of water freezing. The filter can be moved indoors or warm measures can be taken to protect the equipment.
With the above steps, you can successfully make a homemade whiskey barrel pond filter. DIY not only saves costs, but also allows personalized design and adjustment according to the actual situation of the pond, adding a unique charm to your courtyard pond, keeping the pond clear and beautiful at all times, and providing an ideal living environment for fish and aquatic plants.
